MODEL AS-H

For longer distances and/or permanent loads on suitable tracks, crane rails or steel beams

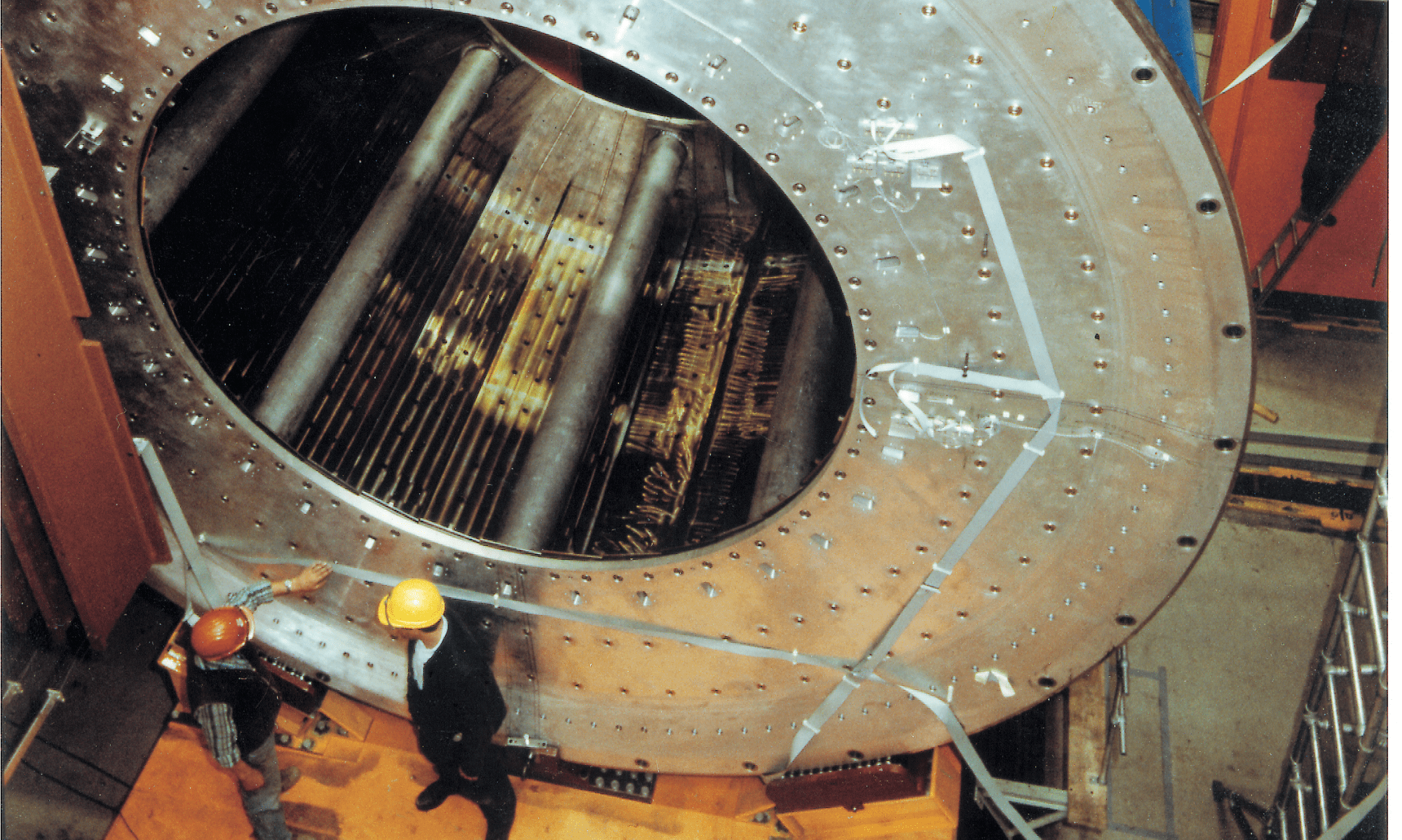

Movement of heavy loads for longer distances or for progressive shifting of scaffolding and shuttering in bridge construction. Also used for hangar doors (hardened shelters), as crawler tracks, in nuclear power stations, in institutes for nuclear research, on oil rigs, in the ship building industry and for tunnel constructions.

particulary stable construction through continious cover plate
particulary wear-resistant due to chain guide (no lateral starting of the hain, mthus no wear of the bolt heads)
can be bolted to the load

Extra robust construction
Low level construction with higher carrying capacity, exchangeable with models …AM and …A due to same outer dimensions
More stability achieved, if load is firmly bolted to roller skates
More stable operation and distribution of load
Reduced wear by center plate chain guide (no contact between chain and sidewalls, no wear to rivet heads)

Models I-IIIv have 4 bolt holes as standard
If problems of load distribution occur e.g. by wind forces, it is necessary to select moedel AS-H_50CrV4
Maximum speed: 5m/min
The rolling resistance depends on the track. For smaller models I-IIIv 7-5%, for larger models 5-3% of the total load
Available with http://boerkey-gmbh.de/de/produktuebersicht/fuehrungsrollen/
Location of the fixing holes can be arranged to suit customers’ requirements
Optional in galvanised or stainless steel construction
Several models for off-shore puposes approved by LRS, ABS, DnV

Model AS-H-50CRV4

(H=hardened and machined center plate)

(roller material 50CrV4)

Size	a	b	c	Ød	e	f	g	h	Øi	k	l	Supporting rolls	Roll number	Capacity max kN	Weight kg
III	270	130	210	30	68	10	14	104	18	175	95	4	13	400	19,6
IIIV	320	140	220	30	68	10	18	115	18	180	120	6	17	500	29,5
IV	380	168	270	42	76	19	19	145	22	220	140	4	13	650	51,7
V	530	182	300	50	86	19	19	165	22	240	205	6	17	850	93,0
VL	580	182	300	50	86	19	23	170	26	250	250	8	21	1000	109,0
Vv	650	205	350	50	100	20	28	190	26	280	240	9	23	1500	162,0
VI	900	205	380	50	100	20	38	200	33	300	360	13	31	2000	266,0
