Model C
Model C
Model C
Applications
- For short distances

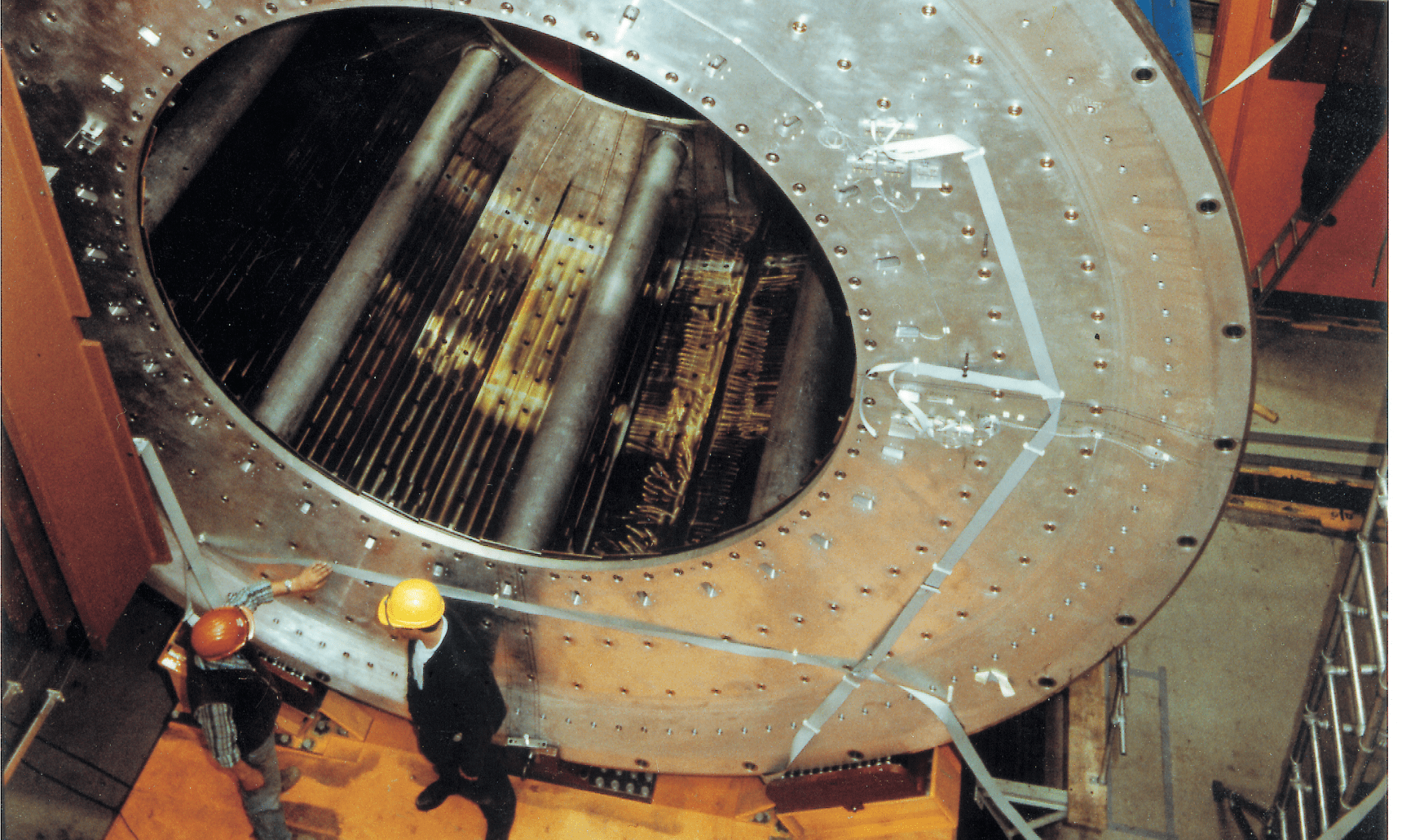

- Movement of moderately heavy loads e.g. to transport materials in ovens, for shuttering, concreting or stocking techniques
- can be welded to the load
- ideal model for confined spaces
Key features
- Stable, solid basic construction
- Low level construction and smooth top achieved after welding, models N and B are the same height
- can be welded to the load to ensure Roller Skates and load are firmly connected
- Available with hardened center plate (=models C-H) or additional with higher tensile rller material 50CrV4 (=models C-H-50CrV4)
Hints on use:
- If the rollers are being used to their maximum carrying capacity or with lengthy intervals between use, choose models with a hardened center plate (=model C-H)
- In case of possible overload, choose chain roller material 50CrV4
- maximum speed: 5m/min
- The rolling resistance depends on the track. For smaller models I-IIIv 7-5%, for larger models 5-3% of the total load
- Can be arranged with guide rollers
- For scaffolding application the chain alone can be used (length according to customers’ specification)
Mod C, C-H (H= hardened and machined center plate)
C-H-50CrV4 (roller material 50CrV4)
| Size | a | b | c | Ød | e | f | Supporting rolls |
Roll number |
Capacity max kN |
Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|
| I | 210 | 100 | 63 | 18 | 51 | 6 | 5 | 15 | 100 | 5,0 |
| II | 220 | 113 | 73 | 24 | 60 | 10 | 4 | 13 | 150 | 7,0 |
| III | 270 | 130 | 90 | 30 | 68 | 10 | 4 | 13 | 300 | 12,5 |
| IV | 380 | 168 | 126 | 42 | 76 | 19 | 4 | 13 | 600 | 32,0 |
| V | 530 | 182 | 146 | 50 | 86 | 19 | 6 | 17 | 800 | 61,0 |
